1.Usage

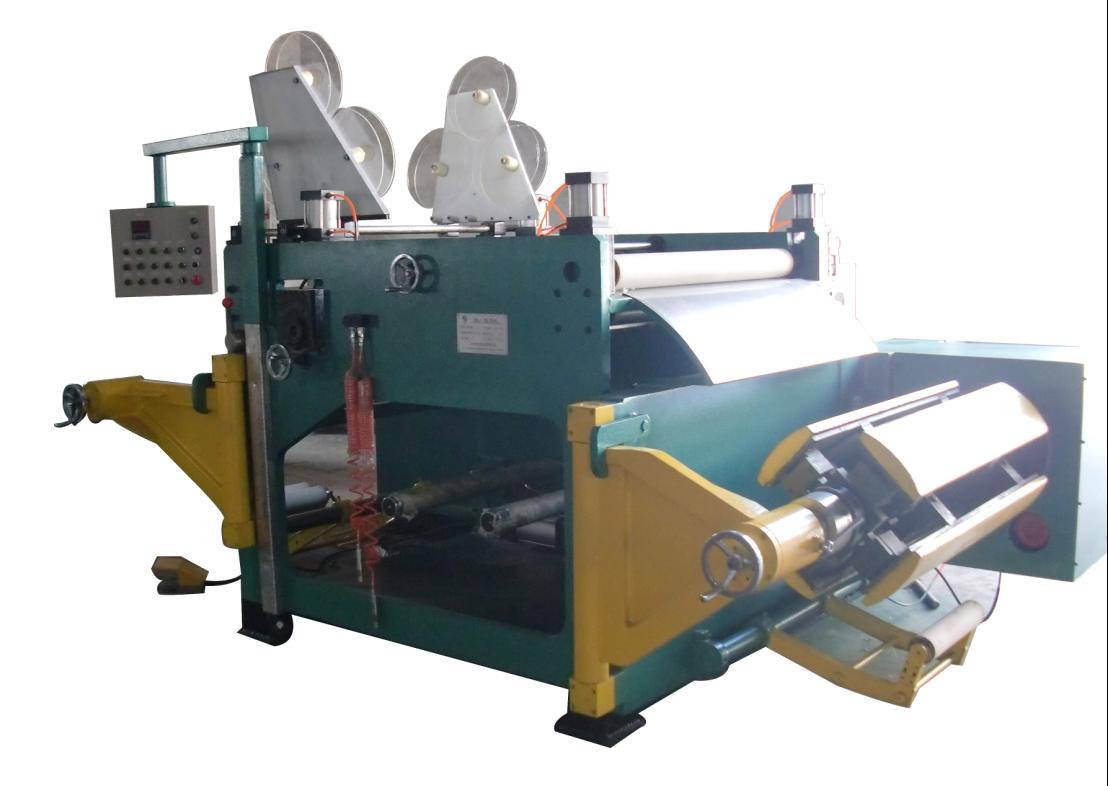

CNC foil winding machine is suitable for coil winding of transformer foil winding production,it uses magnetic clutch line planes and it is counted by encoder, use variable frequency and stepless for speed adjustment, it is easy and simple for operation.
2.Features
The machine has continuing tension during winding, the tension is controlled by control panel, and the tension is kept during winding, backing or stop, which make coil compaction. Line plane has automatic tracking function through high-precision straight-line rail.
3.Components
1. Unwinding and rectification devices
2. Feeding device
3. Layer insulation device
4. Shear device
5. Winding device
6. Welding device
7. Photoelectric edge control device
8. Clean device
9. Presssure device
10. Electric control box
11. Argon tungsten-arc welding
4.Main technical parameters
| Style | BRJ-1400 | BRJ-1100 | BRJ-800 |
| Height of coil | 300-1400mm | 300-1100mm | 300-800mm |
| Thickness of foil | Copper foil 0.5-2.0mm | Copper foil 0.5-2.0mm |
Copper foil 0.5-2.0mm |
| Alumimum foil 0.5-3.0mm | Alumimum foil 0.5-3.0mm | Alumimum foil 0.5-3.0mm | |
| Max.diameter of coil | 800mm | 800mm | 800mm |
| Form of coil | Square, Rectangle, Round | Square, Rectangle, Round | Square, Rectangle, Round |
| Winding speed | 0-24r/min speed stepless | 0-24r/min speed stepless | 0-24r/min speed stepless |
| Shearing speed | 0-1.5m/min | 0-1.5m/min | 0-1.5m/min |
| Max.tension of foil tape | 18000N Stepless adjustable | 12000N Stepless adjustable | 6000N Stepless adjustable |
| Winding power | 11KW | 11KW | 11KW |
| Activity scope of foilcoil-loading bar | 460/520mm | 460/520mm | 460/520mm |
| Dimension | 5000x3600x2000 mm | 5000x3200x2000 mm | 4800x2900x2000 mm |
